BP 22 Litre Pressure Feed Tank
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Bullows |
| Material | MS |
| Condition | New |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details

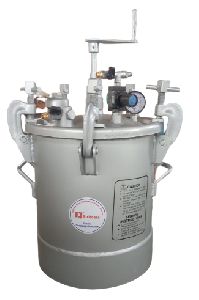

BP 22 ltr. Pressure feed tank is sturdy in design made of MS material highly used for painting application in various industries in paint shop or on site work.
The tank contains an Air Regulator, Pressure Gauge, Safety Valve, Fluid cut off Ball Valve, Fluid Tube with Suction Strainer & as paint is a homogeneous mixture of various solid & liquid parts, to maintain its mixture uniformity a stirrer is provided (manual or auto) options available. With the use of mechanical agitation provided in the Tank, bulk paint can be thinned into the correct viscosity, so minimizing color variation.
Bullows Pressure Feed Containers are available for a wide range of applications and in sizes from (5 litres to 90 litres). The standard construction is suitable for all normal finishing fluids used for coating application.
Techincal Specification
| Sr. No. | Particular | Unit |
| 1 | MOC | MS |
| 2 | Thickness of Tank | 3 mm |
| 3 | Maximum Working Pressure | 4 Bar |
| 4 | Operating pressure range | 2 to 4 Bar |
| 5 | Diameter | 309 mm |
| 6 | Height | 599 mm |
| 7 | Fluid outlet | 3/8” BSP |
| 8 | Air inlet | 1⁄4” BSP |
